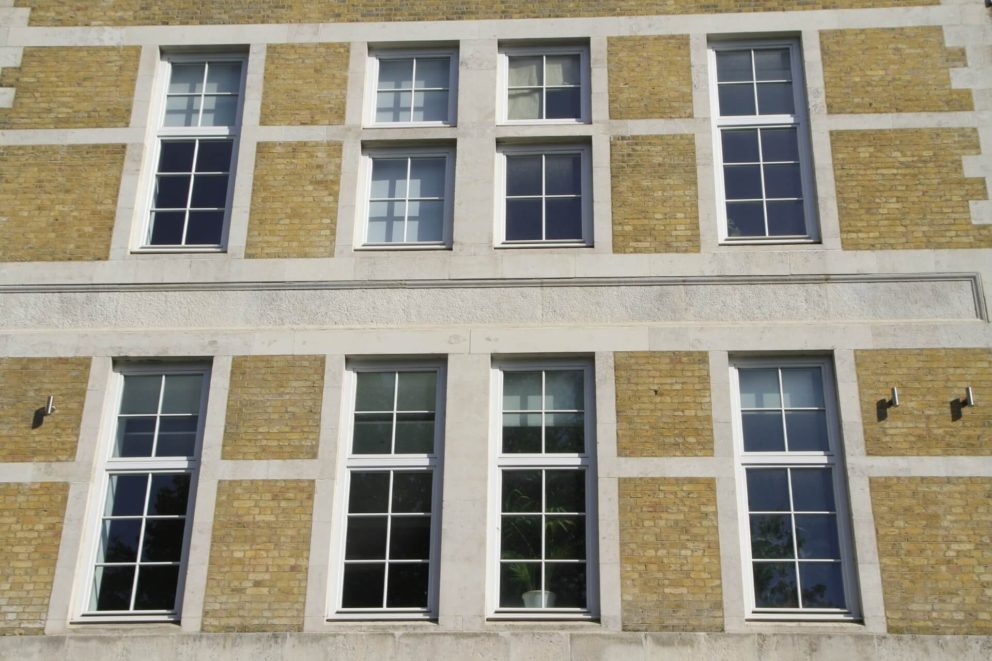

Timber tilt & turn windows

Grand, yet discreet and secure. TRC timber tilt and turn windows combine style, versatility and security.
Grand, yet discreet and secure. TRC timber tilt and turn windows combine style, versatility and security.

A practical mid-range choice, they are rich in features and deliver tremendous value for money. They provide an operable sash size of up to 3m, helping to convey grandeur and deliver abundant natural light.

Our tilt and turn windows are inward opening and side-hinged, and we offer the option of tilt-only hinging too. Double- and triple-glazed options are standard, with a choice of glass types, frame timbers and colours.

Specifications

Downloads Downloads
Typical Tilt & Turn Timber Window
PDF CAD
Traditional Tilt & Turn Timber Windows
REVIT IFC
Traditional Tilt & Turn Timber Windows – Direct Glazed Over Direct Glazed
REVIT IFC
Traditional Tilt & Turn Timber Windows – Direct Glazed
REVIT IFC
Traditional Tilt & Turn Timber Windows – Direct Glazed Over Tilt & Turn
REVIT IFC
Traditional Tilt & Turn Timber Windows – Double Direct Glazed
REVIT IFC
Traditional Tilt & Turn Timber Windows – Double Tilt & Turn
REVIT IFC
Traditional Tilt & Turn Timber Windows – Tilt & Turn Floating Mullion
REVIT IFC
Traditional Tilt & Turn Timber Windows – Tilt & Turn Over Direct Glazed
REVIT IFC
Product guidance - as standard
Frame
78 x 78 mm - Standard. 92 x 78 – Optional for Enhanced Thermal performance. Manufactured using mortise and tenon joints, glued and mechanically fixed.
Sash
78 x 78 mm - Standard.
Sill projection
50 mm, 60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 110 mm.
Wood moisture content
12-19%.
Glazing beads
Internally beaded.
Product specification
Material
Engineered redwood - Standard. Engineered hardwood, Accoya, European oak.
Finish
Three coat spray applied factory finish using water based micro-porous paint/ stain.
Colour
White - RAL 9016 - Standard. Any RAL - from RAL classic range. Stain - from TRC stain range.
Glazing
Double glazed, 4/16/4 Low-E – Standard. Triple glazed 4 Low-E /14/4/16/4 Low-E Optional.
U-value
1.2 W/m²K double glazed – 0.8 triple glazed W/m²K.
Perimeter spacer bars
White warm edge perimeter spacer with white warm edge integral spacers - Standard. Silver and Black spacer optional.
Frame profile moulding
Standard 25mm.
Trickle ventilation
Through sash trickle ventilator. EA 1700, 4400, 5000 mm² - Standard. Through frame head – Optional.
Security
Can conform to PAS 24
Glazing Bars
Applied 18 & 22mm glazing bars to external faces of double glazed unit
Downloads Downloads
Typical Tilt & Turn Timber Window
PDF CAD
Traditional Tilt & Turn Timber Windows
REVIT IFC
Traditional Tilt & Turn Timber Windows – Direct Glazed Over Direct Glazed
REVIT IFC
Traditional Tilt & Turn Timber Windows – Direct Glazed
REVIT IFC
Traditional Tilt & Turn Timber Windows – Direct Glazed Over Tilt & Turn
REVIT IFC
Traditional Tilt & Turn Timber Windows – Double Direct Glazed
REVIT IFC
Traditional Tilt & Turn Timber Windows – Double Tilt & Turn
REVIT IFC
Traditional Tilt & Turn Timber Windows – Tilt & Turn Floating Mullion
REVIT IFC
Traditional Tilt & Turn Timber Windows – Tilt & Turn Over Direct Glazed
REVIT IFC
