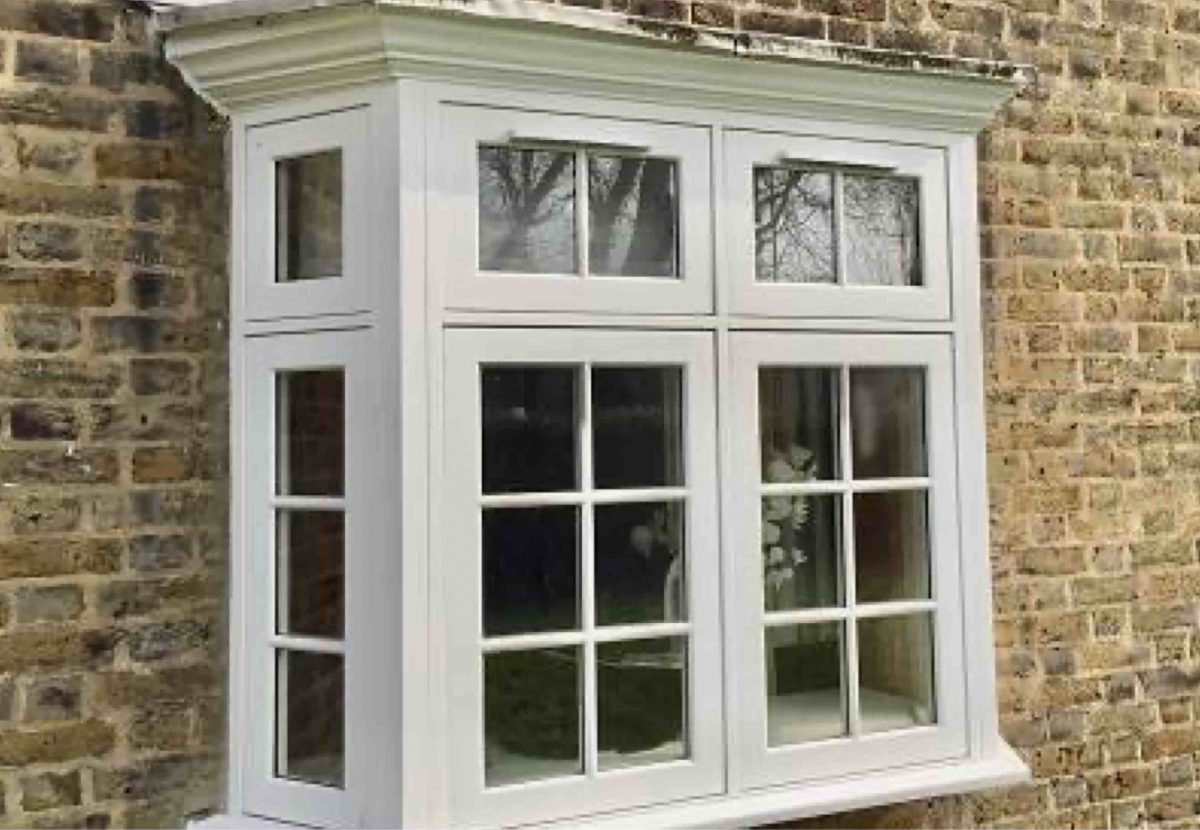

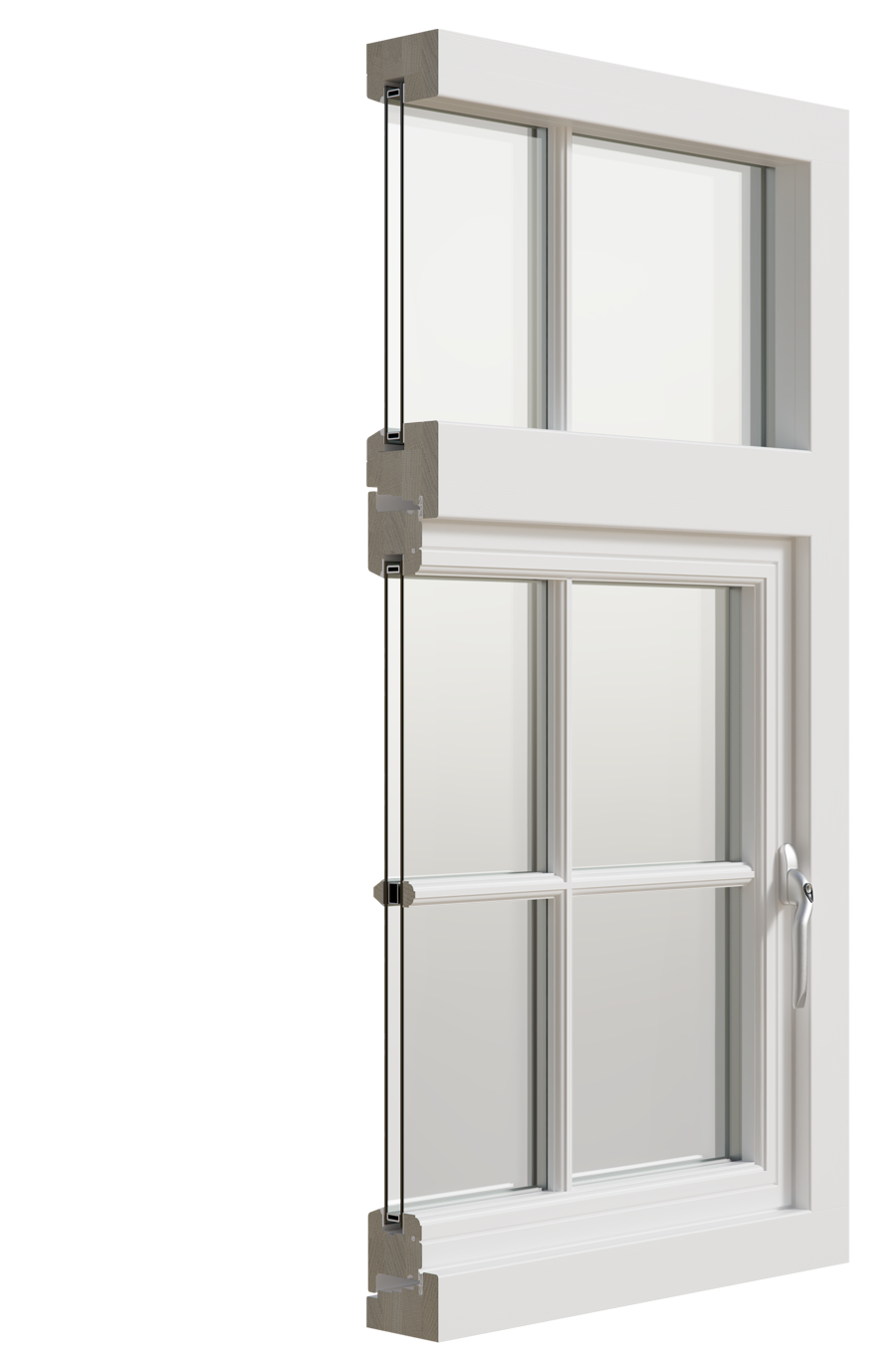

Flush Casement Windows

The smooth lines of TRC traditional flush timber casement windows sit beautifully in the frame. However, they offer more than simple, sleek aesthetics. They are Secured By Design (SBD) certified too.
The smooth lines of TRC traditional flush timber casement windows sit beautifully in the frame. However, they offer more than simple, sleek aesthetics. They are Secured By Design (SBD) certified too.

Our flush casement timber windows open outwards and can be top or side hung. They can also be supplied fully reversible to enable external glass to be cleaned safely from inside the building. Perfect for high-rise developments!

With four glass options mounted in hardwood or softwood frames, double- or triple-glazing, and double-gasketing, weather containment is assured.

Specifications

Downloads Downloads
Typical Flush Casement Window Sections
PDF CAD
Traditional Flush Casement Timber Windows – Direct Glazed
REVIT IFC
Traditional Flush Casement Timber Windows – Direct Glazed Over Direct Glazed
REVIT IFC
Traditional Flush Casement Timber Windows – Double Direct Glazed
REVIT IFC
Traditional Flush Casement Timber Windows – Double Side Hung
REVIT IFC
Traditional Flush Casement Timber Windows – Double Side Hung Floating Mullion
REVIT IFC
Traditional Flush Casement Timber Windows – Side Hung
REVIT IFC
Traditional Flush Casement Timber Windows – Side Hung Next To Direct Glazed
REVIT IFC
Traditional Flush Casement Timber Windows – Top Hung
REVIT IFC
Traditional Flush Casement Timber Windows – Top Hung Over Direct Glazed
REVIT IFC
Traditional Flush Casement Timber Windows – Top Hung Over SideHung
REVIT IFC
Product guidance - as standard
Frame
56 x 90 mm - Standard. Manufactured using mortise and tenon joints, glued and mechanically fixed.
Sash
46 x 68 mm - Standard.
Sill projection
50 mm, 60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 110 mm.
Wood moisture content
12-19%.
Glazing beads
Internally beaded.
Product specification
Material
Engineered redwood - Standard. Engineered hardwood, Accoya, European oak.
Finish
Three coat spray applied factory finish using water based micro-porous paint/ stain.
Colour
White - RAL 9016 - Standard. Any RAL - from RAL classic range. Stain - from TRC stain range.
Glazing
Double sglazed, 4/16/4 Low-E – Standard.
U-value
1.2 W/m²K double glazed – 0.8 triple glazed W/m²K.
Perimeter spacer bars
White warm edge perimeter spacer with white warm edge integral spacers - Standard. Silver and Black spacer optional.
Frame profile moulding
Ovolo 22mm, Ovolo 18mm, Lambs Tongue 22mm, Lambs Tongue 18mm.
Trickle ventilation
Through sash head trickle ventilator. EA 1700, 4400, 5000 mm².
Security
Can conform to PAS 24.
Glazing Bars
Applied 18 & 22mm glazing bars to external faces of double glazed unit
