Traditional

Timber sliding doors

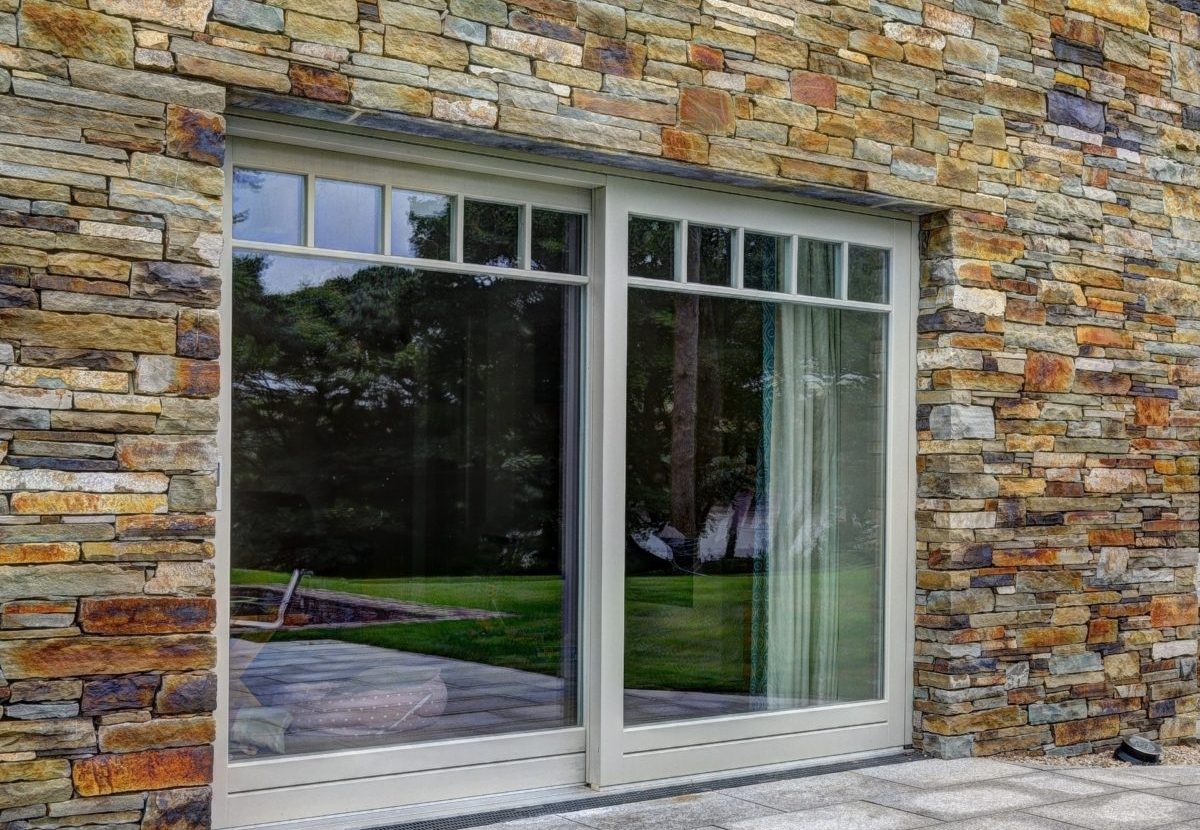

TRC lift and slide timber doors create a light and spacious feel and provide outstanding thermal containment. Narrow frame profiles hold huge glass panes up to 3m x 3m and fixed panels can also be installed down to threshold level and below for additional light.

Enquire

Additional low-profile threshold inserts provide near-seamless accessibility, making our timber sliding doors ideal for hotels and restaurants, as well as contemporary apartments. A high-performance mechanism lifts the doors onto runners when they need to be moved, so this system can accommodate doors as heavy as 400kg.

Double- or triple-glazing is offered in four glass types, and the hardwood or softwood frames are also available in RAL colours.

Specifications

Product guidance - as standard

Frame

56 x 184 mm - Standard. Manufactured using mortise and tenon joints, glued and mechanically fixed.

Sash

120 x 78 mm - Standard.

Sill

Thermally Broken Aluminium 50 x 182 – Standard.

Wood moisture content

12-19%.

Glazing beads

Internally Beaded.

Product specification

Material

Engineered redwood - Standard. Engineered hardwood, European oak.

Finish

Three coat spray applied factory finish using water based micro-porous paint/ stain.

Colour

White - RAL 9016 - Standard. Any RAL - from RAL classic range. Stain - from TRC stain range.

Glazing

Double sglazed, 4 tgh /16/4 tgh Low-E – Standard.

U-value

1.3 W/m²K double glazed. 1.0 W/m²K triple glazed.

Perimeter spacer bars

White warm edge perimeter spacer with white warm edge integral spacers - Standard. Silver and Black spacer optional.

Security

Single Doors Can conform to PAS 24

Glazing Bars

Applied 18 & 22mm glazing bars to external faces of double glazed unit
